Note:  All VNA information from below has been moved to a new separate page VNA

NEW:  AutoSW 10MHz and 122MHz Buffer for Hermes

I wanted a way to get the 122.88MHz clock [called "125MHz" on schematic] out of the Hermes similar to the Mercury EXT CLK [J1].  A SN65LVDS1DBVR looked to be the answer.  But how to "glue" it onto Hermes ?  Since I also want to connect my LPRO-101 as well I  took Mike's [KF4BQ] AutoSw 10MHZ design and added the line driver.  Since I did not have any of the parts I also changed some of the parts to a larger footprint and added some power decoupling similar to Hermes.  Document link below has the info.  Also a zip of the Gerbers following.  Thanks to KF4BQ for his work on the AutoSW design.

AutoSw_10_MHz-122MHz_Buffer.pdf
AutoSw-Buffer_Gerber.zip



K9IVB Hermes info    More info at Hermes wiki page

This is a place where I put my info while working on the Hermes V1.8 manual

Recently moved the old out of date links to the bottom of the page !

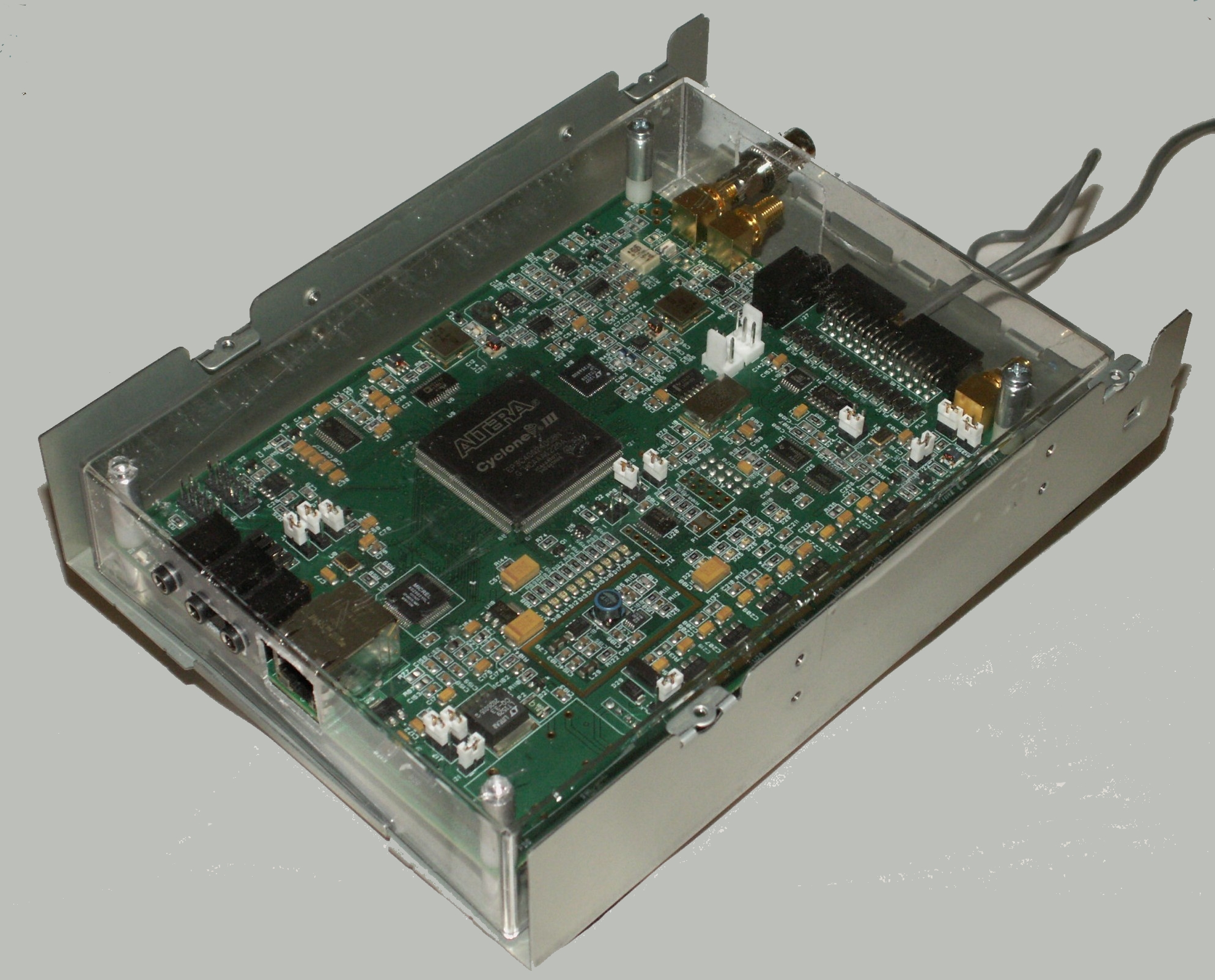

Made a temporary case from the top U of an old CD drive
and put an acrylic picture frame on top to keep various detritus
from damaging the board, until the Apollo and TAPR case become available.



Click here for a larger picture

I have not as yet found an accurate TAPR BOM "as built" so please don't ask .
TAPR has never released the "as built" BOM.  The TAPR and Apache Labs BOM are not the same !

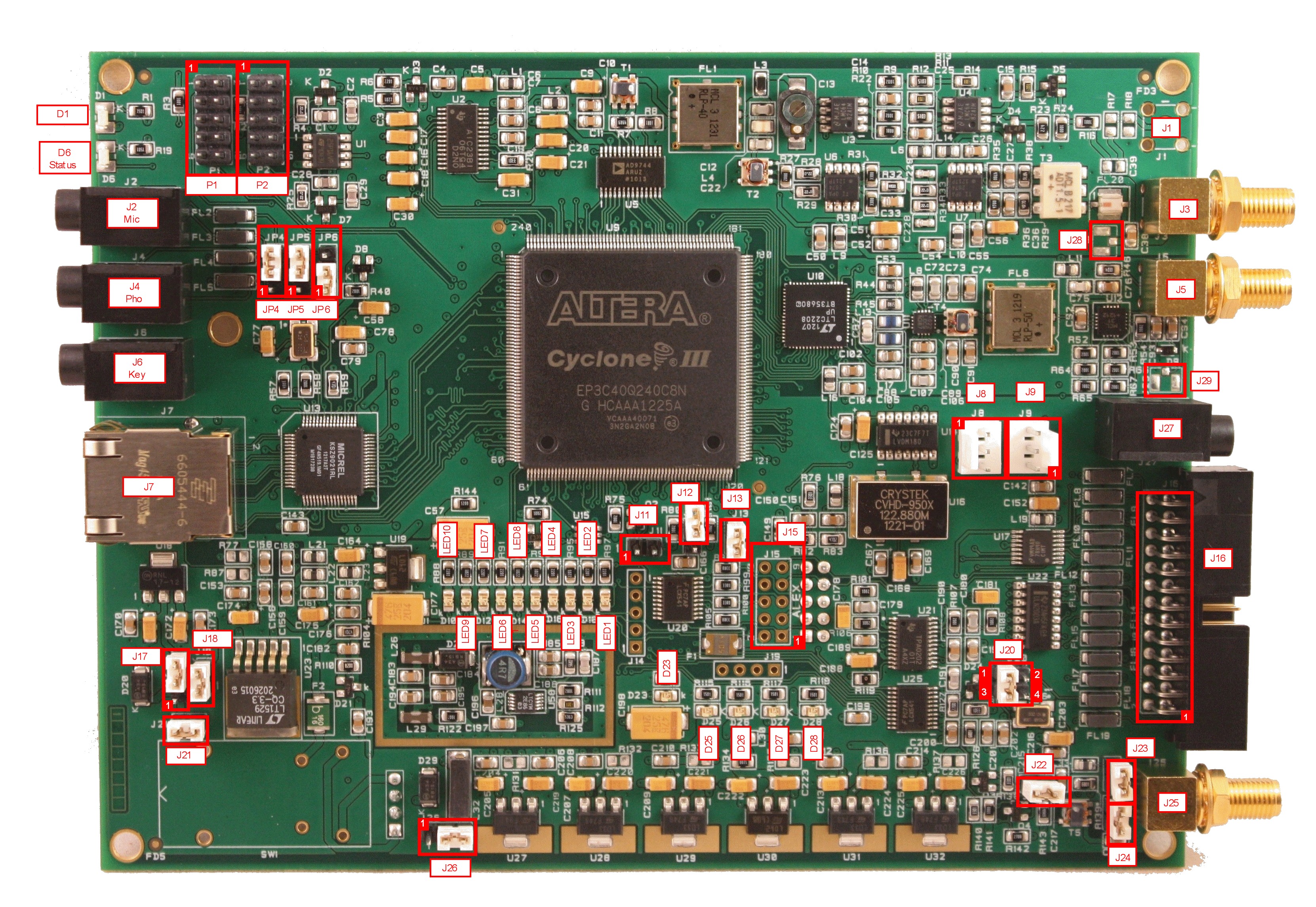

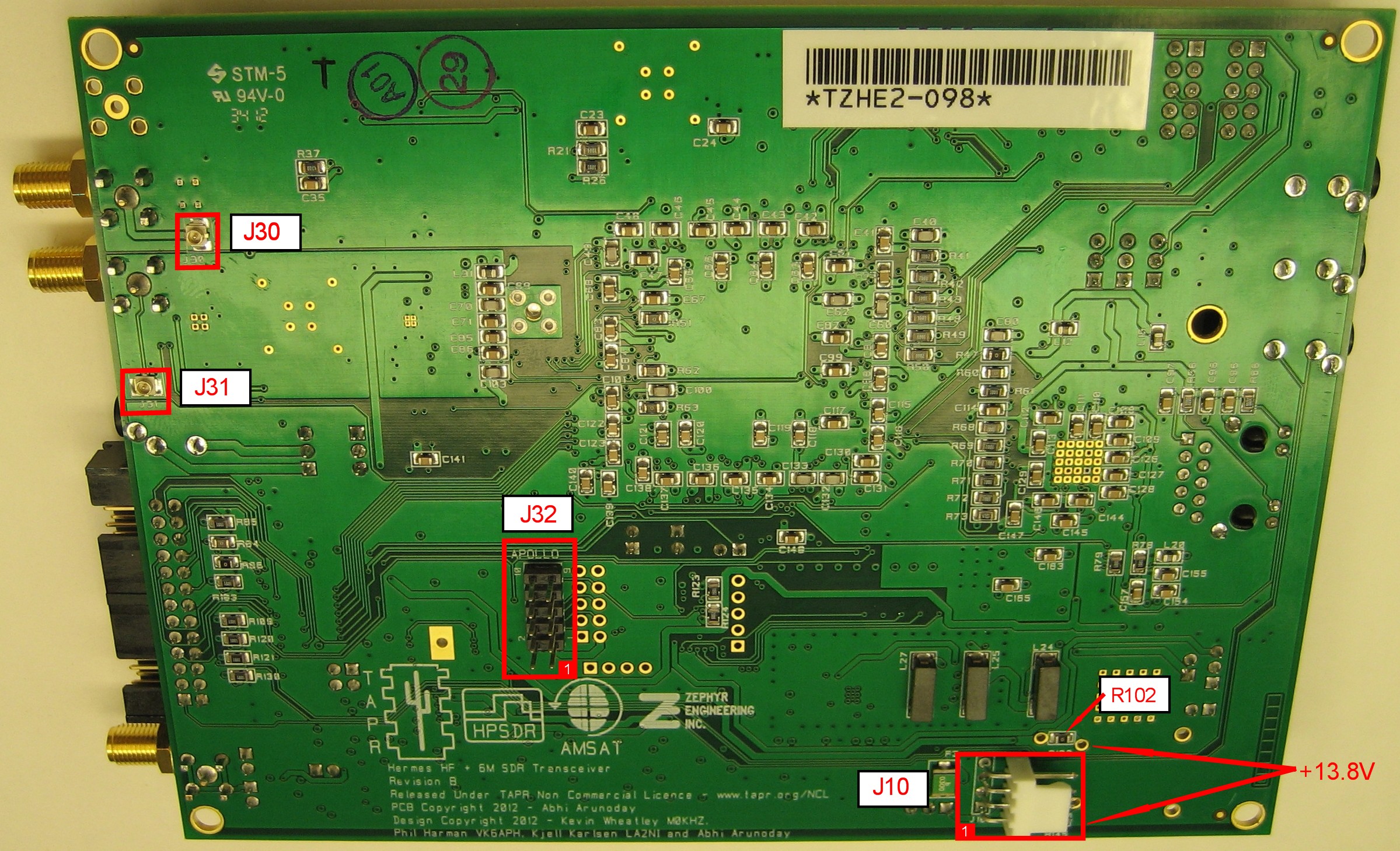

Here is a list of mating connectors and substitute parts.  See link below:
                Hermes mating conn ref.xls

NEW [5/1/2017]:  Vasiliy K3IT has provided the BOM below.  This is a modified Apache BOM.
There are quite a few corrections based on email threads posted on the reflector.
The changes from the original Apache BOM are highlighted with a blue font.
            K3IT-1010_HERMES_PROD_BOM_08112012_Bot_Top.xls




HERMES_PROD_SCHEMATICS[gama_v18_10-09-2012].pdf

New - Component Placement Guide courtesy of Terry Long N8AB
          Hermes_Component_Placement_Guide_20121105.pdf

Revision 2 Hermes End Plates

Hermes End Plates v2.pdf

Hermes End Plates v2.WMF

Hammond endplate info including Apollo courtesy of Ian Guffick G7JXY

New
Hermes_Hammond_Frontpanel_Cutouts_V2.pdf
Hermes_Hammond_Frontpanel_Cutouts_V2.zip  DWG in ZIP format format

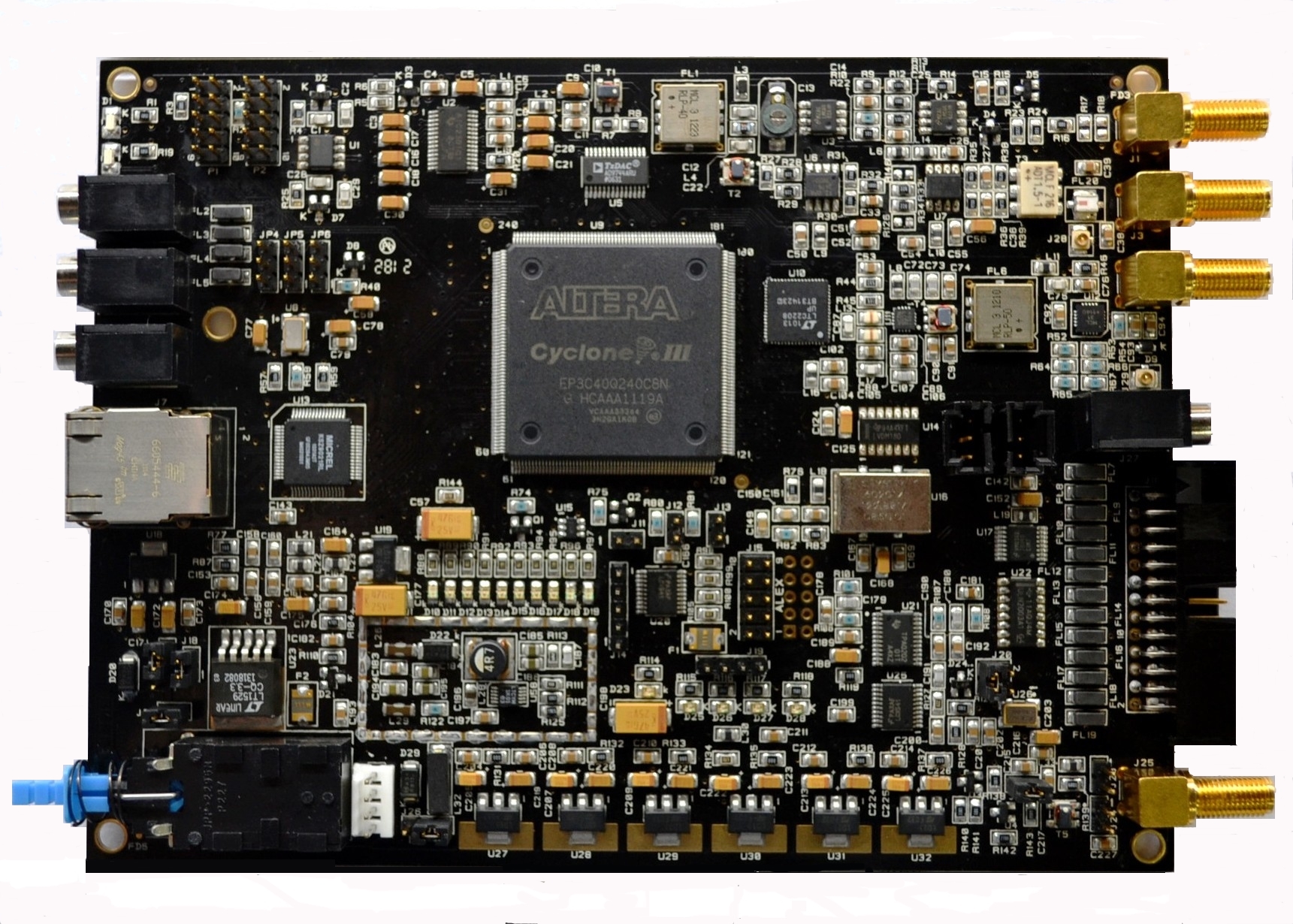

For comparison purposes one of the Apache Labs Versions

Apache Labs Hermes.jpg

        Some musings on various component values for R17 & R18  that connect to J1 Transverter.
        The value of C39 can be changed, but it was set at 100nf in cell F3 [$F$3 in equations].
        None of the 3 components were installed on the TAPR builds and all appear to be 0805 SMT parts.
        The spreadsheet is not a sophisticated user friendly endeavor, but a way that I tend to do
        repetitive math problems.  Knowledge of Excel formulas will be helpful.  Link Below:

        Transverter interface.xls

Some links to some excellent programs that were used:

Graphisme et utilitaires - PhotoFiltre ver 6.53
[in Downloads - which is located in top left Left column] http://photofiltre.free.fr/frames_en.htm
Extract to anywhere and run. Nice program and features. Simple editing & easy to use

Dassault Systems DraftSight - Free DWG reader editor
http://www.3ds.com/products/draftsight/overview/

Schindler & Shill Gmbh -  GerberLogix V280 Gerber viewer - great program
http://www.easylogix.de/products_detail.php?prog_id=1

Some Vendors that you may have an interest:

SMA Adapters - plus lots of other cables and accessories.
SMA to BNC ($2.89) and SMA to UHF adapters ($2.89)
Wired Communications, LLC.
7342 E. Quail Track Road
Scottsdale, AZ 85266
http://www.wiredco.com/Amateur_Ham_Radio_s/1827.htm

Inexpensive crimp tools if you are doing 26 J16 pins
ACC175 Crimper for AMP pins $17.50
ACC185 Crimper for Anderson Power Pole $39.99
http://www.maxxprod.com/mpi/mpi-4.html
Maxx Products International, LLC.
815 Oakwood Road, Unit D, Lake Zurich, IL 60047

U10 [LTC2208CUP] possible heatsink (8 pieces) from Early Bird Savings
{LTC2208CUP - UP 64 pin QFN is 9 x9 mm}
8 x Aluminium Heatsink Fr Computer DDR VGA RAM Memory IC Chipset Cooler Cooling
SKU:CCL026 $2.84 ppd to USA 15 x 15 x 8 mm
http://www.earlybirdsavings.com/p/8-x-Aluminium-Heatsink-Fr-Computer-DDR-VGA-RAM-Memory-IC-Chipset-Cooler-CCL026



Old or out of date links

Change Notice for Hermes User Manual Ver 1.7.pdf

Hermes_User_Manual_V1.8.pdf

Old original Hermes End Plate information in different formats
Hermes End Plates.pdf
Hm_EndP.zip DWG in ZIP format
Hm_EndP.WMF

Hammond endplate info including Apollo courtesy of Ian Guffick G7JXY
Old
Hermes_Hammond_Frontpanel_Cutouts_V1.pdf
Hermes_Hammond_Frontpanel_Cutouts_V1.zip  DWG in ZIP format format
